Center Trim Molding:
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

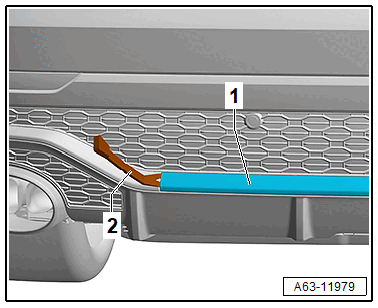

-- Tape off the painted surface of the trim molding -1- using adhesive tape, so that the paint will not be damaged.
-- Position the scraper -2- as shown and carefully release the catches of the trim molding -1-.
-- Remove -1- trim molding.
Side Trim Molding:
-- Remove the center trim molding. Refer to Center Trim Molding: .

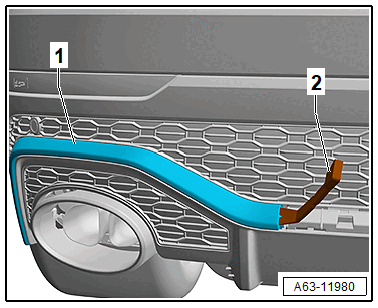

-- Tape off the painted surface of the trim molding -1- using adhesive tape, so that the paint will not be damaged.
-- Position the scraper -2- as shown and carefully release the catches of the trim molding -1-.
-- Remove -1- trim molding.
Installing
Install in the reverse order of removal while noting the following:
-- Clip in the trim molding until it engages audibly.
