Center Bumper Cover Mount, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- If equipped, remove the Emergency Call Module Antenna -R263-. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .
-- If equipped, remove the Lane Change Assistance Control Module 2 -J770- and Lane Change Assistance Control Module -J769-. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- /LANE CHANGE ASSISTANCE CONTROL MODULE 2 -J770-, REMOVING AND INSTALLING .

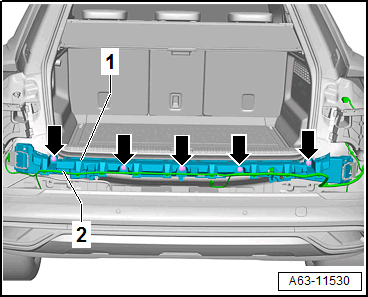

-- Free up the wiring harness -2-.
-- Remove the nuts -arrows-.
-- Remove the center mount -1-.
