Bumper Cover Lower Section, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

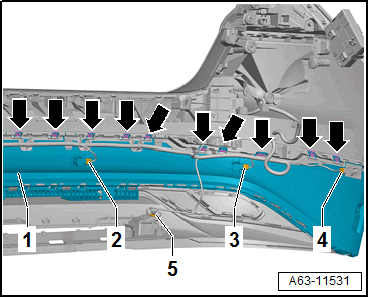

-- Release and disconnect the connectors -2- to -4-.
-- If equipped, disconnect the connector -5- and free up the wiring harness.
-- Release the retainers -arrows-.
-- Remove the lower section -1- from the bumper cover.
-- If the bumper cover lower section is replaced, also remove the following components:
- Spoiler. Refer to SPOILER, REMOVING AND INSTALLING .
- If equipped, the rear diffuser. Refer to REAR DIFFUSER, REMOVING AND INSTALLING .
- If equipped, the bumper cover trims. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING .
- Rear parking aid sensors. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING .
- If equipped, rear parallel parking assist sensors. Refer to LEFT REAR PARALLEL PARKING ASSISTANCE SENSOR -G716- /RIGHT REAR PARALLEL PARKING ASSISTANCE SENSOR -G717-, REMOVING AND INSTALLING .
