Headlamp Washer System Washer Nozzle Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

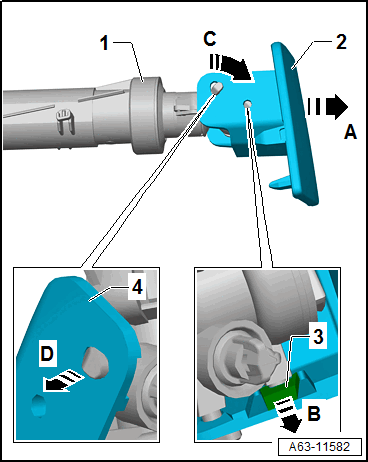

-- Pull the washer nozzle telescope -1- all the way -arrow A-.
-- Hold the telescope -1- in the extended position.
-- Spread the side pieces -3- of the cover -2- for the spray nozzle -arrow B- and carefully disengage from the pins -arrow C-.
-- Spread the side pieces -4- of the cover -2- for the washer nozzle -arrow D- and carefully disengage from the pins.
-- Remove the washer nozzle cover -2-.
