Side Air Intake Grille, Removing And Installing, Q8: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center air intake grille. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING .

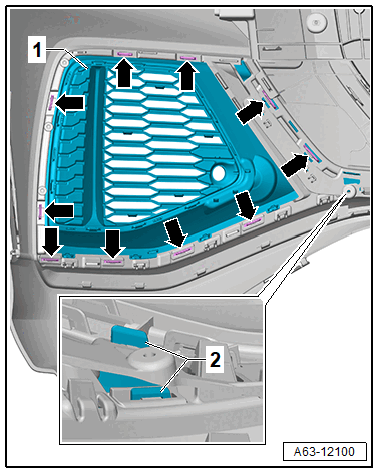

-- Free up the air intake grille -1- from the wires.
-- Release the retainers -2-.
-- Release the retainers -arrows-.
-- Remove the air intake grille -1- toward the front.

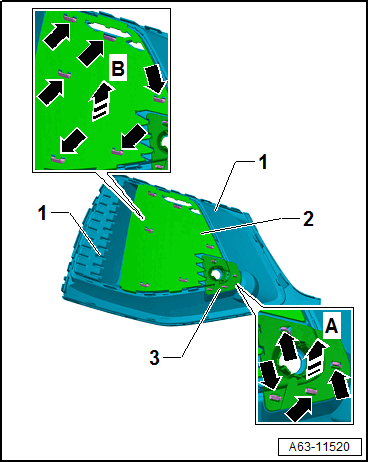

-- Vehicles with air intake grille trim: release the catches -arrows- and remove the trim -2- from the air intake grille -1- -arrow B-.
-- Vehicles with parking aid sensor mount: release the catches -arrows- and remove the mount -3- from the air intake grille -1- -arrow A-.
