Bumper Cover Side Piece, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front spoiler side. Refer to SIDE FRONT SPOILER, REMOVING AND INSTALLING, RS Q8 .
-- Remove the side end panel. Refer to BUMPER COVER SIDE END PANEL, REMOVING AND INSTALLING .
-- Remove the center grill. Refer to CENTER GRILLE, REMOVING AND INSTALLING .
-- Remove the center end panel. Refer to BUMPER COVER CENTER END PANEL, REMOVING AND INSTALLING, RS Q8 .
-- Remove the radiator grille center end panel. Refer to CENTER END PANEL, REMOVING AND INSTALLING, RS Q8 .
-- Remove the side air intake grille. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS Q8 .

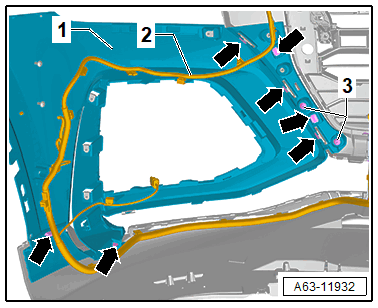

-- Free up the wiring harness -2- at the bumper cover side piece -1-.
-- Remove the bolts -3-.
-- Release the retainers -arrows-.
-- Remove the bumper cover side piece -1-.
