Windshield Spray Pattern, Checking, Hybrid Nozzles
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

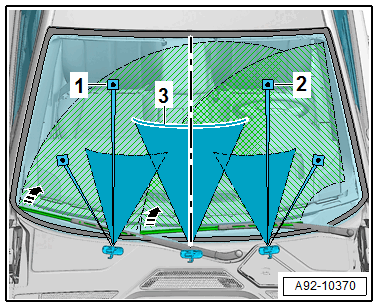

The spray pattern must meet the following specifications:
- Front passenger side spray nozzle unit: the point of impact -1- of the upper spray point is near the upper edge of the wiper area.
- Driver side spray nozzle unit: the point of impact -2- of the upper spray point is at the same height as that of the right spray nozzle unit.
- Center spray nozzle unit: the point of impact -3- of the fan spray is positioned between the fan spray of the properly adjusted side spray nozzle units and their upper spray points.
Procedure:
-- Activate the windshield washer system and assess the spray pattern.
-- If the spray pattern does not meet the specifications, adjust the spray nozzles. Refer to WINDSHIELD SPRAY PATTERN, ADJUSTING, HYBRID NOZZLES .
