Rear Window Spray Pattern, Checking, Wet Wiper Arm
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

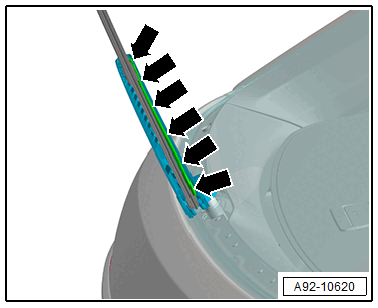

The wet wiper arm on the rear is equipped with multiple vents. The spray pattern must be checked at all nozzles -arrows- spray water.
- Points of impact are just above the wiper blades
- Even water spray from all vents.
- The jet from the outermost nozzle hits approximately at a distance of 10 cm from the wiper arm nozzle.
Procedure:
-- Activate the rear window washer system and assess the spray pattern.
-- If the spray pattern does not meet these specifications, adjust the spray nozzles.
