Telephone BASEPLATE, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

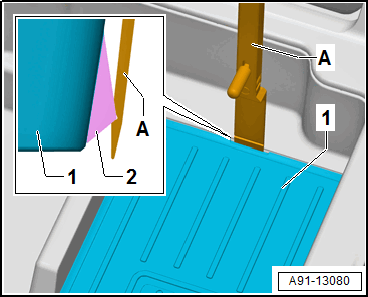

The Mobile Device Charger 1 -J1146- -1- is clipped into the storage compartment.

Courtesy of AUDI

The rubber lip on the surface on which the Removal Tool for Coupling - Aerial:T40388 was inserted must be slightly pressed out.

-- Using the Removal Tool for Coupling - Aerial:T40388 -A-, carefully push the rubber lip on the Mobile Device Charger 1 -J1146- to the side and guide in the Removal Tool for Coupling - Aerial:T40388 vertically from above as shown.

-- The catch -2- is released and engages in the groove on the Removal Tool for Coupling - Aerial:T40388 -A-.

-- Pull the Removal Tool for Coupling - Aerial:T40388 -A- back out vertically upward and remove the Mobile Device Charger 1 -J1146- -1- from the storage compartment.

-- The Mobile Device Charger 1 -J1146- is clipped in on the opposite side. Pivot the Mobile Device Charger 1 -J1146- -1- out of the storage compartment.

-- Release and disconnect the connectors from the Mobile Device Charger 1 -J1146-.
