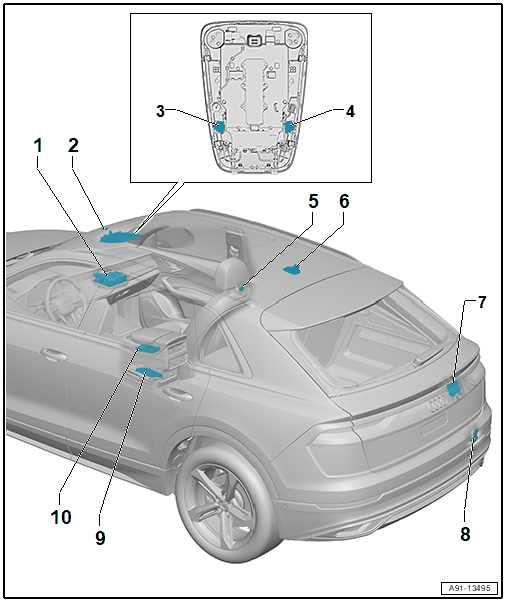

Component Location Overview - Telephone System, From My 2021

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
Wireless Data Transmission Antenna 2 -R366-
- In mirror base
- Removing and Installing. Refer to Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING .
Left Front Microphone -R140-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
Right Front Microphone -R141-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
Wireless Data Transmission Antenna -R336-
- On the right B-pillar
- Removing and Installing. Refer to Wireless Data Transfer Antenna -R336-, REMOVING AND INSTALLING .
Bluetooth Antenna -R152-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
Cellular Telephone Amplifier -R86-
- in rear right of luggage compartment
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
LTE Antenna 3 -R330-
- Under the rear bumper cover on the right side
- Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
Control Module for Emergency Call Module and Communication Unit -J949-
- Under the right front seat
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
Mobile Device Charger 1 -J1146-
- In the front center console storage compartment
- Removing and Installing. Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .
