Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

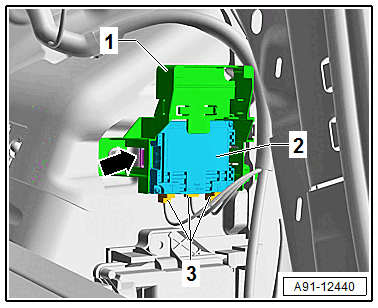

-- If equipped, unclip the Parking Heater Radio Receiver -R64- -1- in direction of -arrows- and pivot to the side while the connectors are still connected.
-- Press the retainer -arrow- on both sides and remove the Cellular Telephone Amplifier -R86- -2- from the bracket -1-.
-- Release and disconnect the connectors -3- from the Cellular Telephone Amplifier -R86- -2-.
