Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING: Notes

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

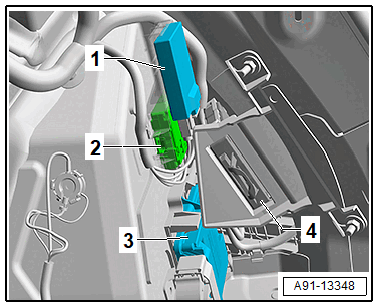

The Cellular Telephone Amplifier -R86- -2- is behind the right luggage compartment side trim panel.

Courtesy of AUDI

-1- Parking Heater Radio Receiver -R64-, 9M9
-2- Cellular Telephone Amplifier -R86-, 9ZE
-3- Reducing Agent Metering System Control Module - J880-
-4- TV Card Reader -R204-, Q0A/Q0B
