Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 9VS/8RF: Notes
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

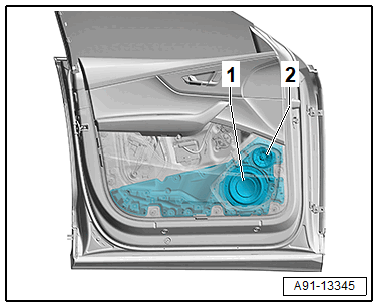

The Left Front Bass Speaker -R21- / Right Front Bass Speaker -R23- -1- are located at the bottom of the front doors to the left and right.
The following speakers are installed in the Left Front Door Speaker -RX2- /Right Front Door Speaker -RX3- :
- Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23- -1-
- Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104- -2-
These speakers cannot be replaced separately.
Removing and installing on the left and right sides are the same.
