Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, PREMIUM SOUND SYSTEM (9VS), FROM MY 2021: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the interior partition cover. Refer to COMPONENT LOCATION OVERVIEW - VEHICLE INTERIOR TRIM PANELS .

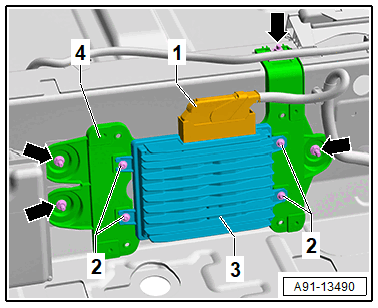

-- Release and disconnect the connector -1- from the Digital Sound System Control Module -J525- -3-.
-- Remove the bolts -2-.
-- Remove the Digital Sound System Control Module -J525- -3- from bracket -4-.
-- If necessary, then remove the nuts -arrows- and the bracket -4-.
