Center Speaker -R208-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center speaker mount. Refer to OVERVIEW - INSTRUMENT PANEL .

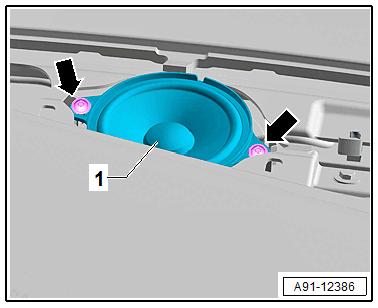

-- Remove the screws -arrows- from the Center Speaker -R208- -1- and remove the Center Speaker -R208- -1- upward.
-- Release and disconnect the connector from the Center Speaker -R208- -1-.
