Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the instrument panel cover on the driver side. Refer to OVERVIEW - INSTRUMENT PANEL COVER, DRIVER SIDE .
-- Release and disconnect the connectors from the Emergency Call Module Speaker -R335-.

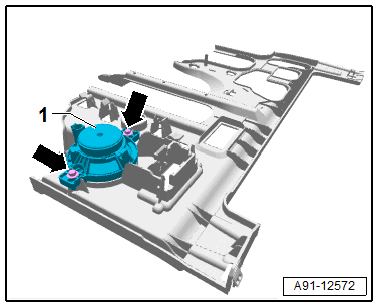

-- Remove the screws -arrows- from the Emergency Call Module Speaker -R335- -1-.
-- Remove the Emergency Call Module Speaker -R335- -1- from the instrument panel cover.
