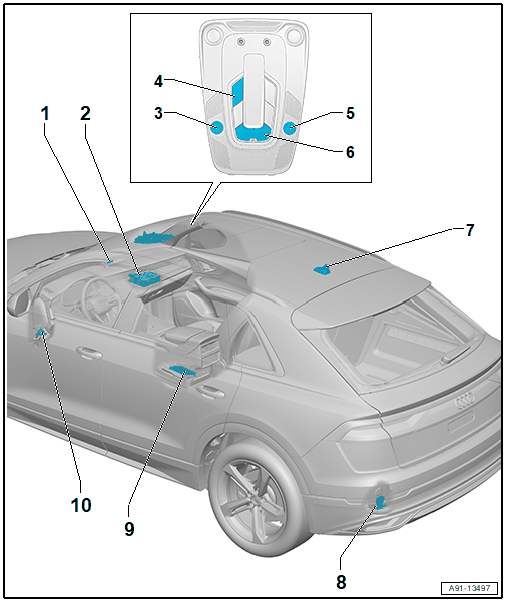

Component Location Overview - Mobile Online Services, From My 2021

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Emergency Call Module Antenna 3 -R323-
- Under the front instrument panel at the center
- Removing and Installing. Refer to EMERGENCY CALL MODULE ANTENNA, REMOVING AND INSTALLING, FROM MY 2021 .
Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
Right Front Microphone -R141-
- In the Front Roof Module -WX3-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
Roadside Assistance Button -E275-
- In the Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Left Front Microphone -R140-
- In the Front Roof Module -WX3-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
Emergency Call Button -E276-
- In the Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
GPS Antenna -R50- and Emergency Call Module Antenna 2 -R322-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
Emergency Call Module Antenna -R263-
- Under the rear bumper cover on the left side
- Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
Control Module for Emergency Call Module and Communication Unit -J949-
- Under the right front seat
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Telematics Emergency Battery -A16-, Removing and Installing. Refer to Telematics Emergency Battery -A16-, REMOVING AND INSTALLING, WITH CONNECT PLUS (IV1 THROUGH IV9 OR JE0 THROUGH JE4), FROM MY 2021 .
Emergency Call Module Speaker -R335-
- In the driver side footwell cover
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
