Steering Wheel Touch Recognition Control Module -J1158-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the driver airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
-- Draw sketches or take pictures of the wire routing in the steering wheel. This will ensure the original wire routing when installing.

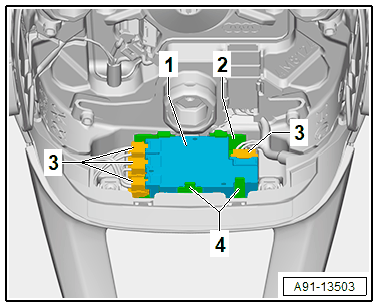

-- Release the retainers -4- from the bracket -2-.
-- Pivot the Steering Wheel Touch Recognition Control Module -J1158- -1- out of the bracket -2-, while doing so, pay attention to the wires.
-- Release and disconnect the connectors -3-.
