Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the driver airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .

-- Draw sketches or take pictures of the wire routing in the steering wheel. This will ensure the original wire routing when installing.

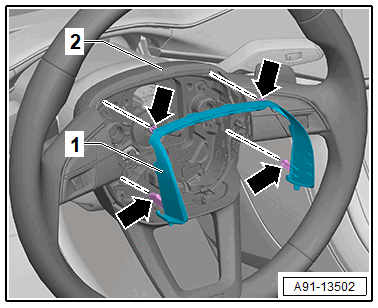

-- Remove the retainers -arrows- at the steering wheel upper trim -1- using the Trim Removal Wedge:3409 from the retainers on the steering wheel -2-.

Courtesy of AUDI

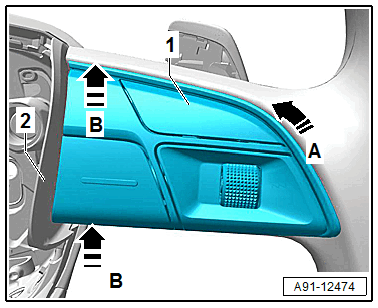

-- Use the Trim Removal Wedge:3409 to release the multifunction button -1- close to the retainers in direction of -B arrows-.

Courtesy of AUDI

-- Pry out the multifunction button -1- on the other side in direction of -arrow A- using the Trim Removal Wedge:3409 .

-- Release and disconnect the connectors from the multifunction button.
