Overview - Infotainment System, From My 2021
On the Infotainment system, the following functions are integrated in the Information Electronics Control Module 1 -J794- :
- Information Electronics Control Module 1 -J794- behind the glove compartment
- Radio function is integrated in the Information Electronics Control Module 1 -J794-
- Front Information Display Control Head -J685-, 10.1 inch display in the center of the instrument panel
- Front Information Display Control Head 2 -J1060-, 8.6 inch display in the front center console
- Instrument Cluster Control Module -J285-, color display in the instrument cluster, 9S7
- USB Distributor -R293- in the front center console storage compartment, two USB ports for data and charging, UF7
- Sound system: standard sound system, 9VD
- Bluetooth Hands-Free Calling, 9ZX
- Multifunction Steering Wheel
- Voice recognition system
Optional
- Digital radio integrated in the Information Electronics Control Module 1 -J794-, ER1/ER2/EZ1 and QV3/Q0D.
- The satellite radio is integrated in the Information Electronics Control Module 1 -J794-, ER3 and QV3
- Instrument Cluster Control Module -J285-, Audi virtual Cockpit, 9S8/Audi virtual Cockpit plus, 9S9
- DVD Player -R7- in the glove compartment, 7D5
- USB Distributor -R293- in the front center console storage compartment, 2 USB ports, SIM card, SD card, IU1
- TV Tuner -R78- in the right side of the luggage compartment at the rear, QU1/QV1/Q0A/Q0B
- TV Card Reader -R204- in the luggage compartment on the right rear side, Q0A/Q0B
- Digital Sound System Control Module -J525- behind the left rear bench seat on the crossmember, 9VS/8RF
- USB Connection 1 -U41- in rear center console trim, two USB ports for data and charging, UF8
- MMI Navigation plus navigation system, 7UG
- Sound system: premium sound system, 9VS / advanced sound system, 8RF
- Audi phone box light, 9ZV
- Audi phone box, 9ZE
- Emergency call system, IW1/IW3

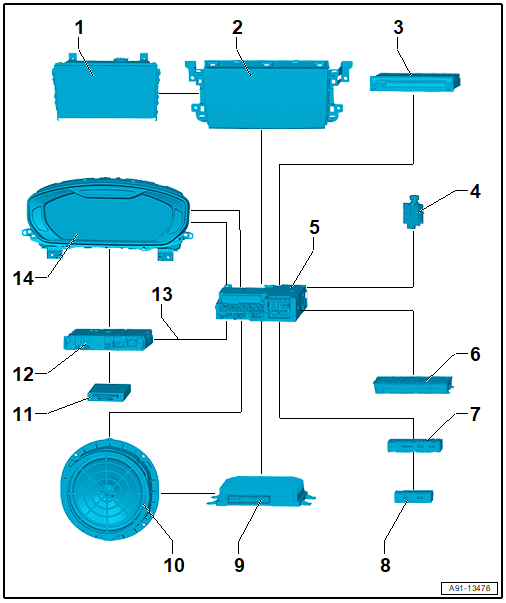

- Front Information Display Control Head 2 -J1060-, in the front center console
- Front Information Display Control Head -J685- in Center of the Instrument Panel
- DVD Player -R7- in glove compartment
- Driver Volume Control -E67-
- Information Electronics Control Module 1 -J794- behind the glove compartment
- Mobile Device Charger 1 -J1146- in the front center console storage compartment
- USB Distributor -R293- in the front center console storage compartment
- USB Connection 1 -U41- in the rear center console trim
- Digital Sound System Control Module -J525- behind the left rear bench seat on the crossmember
- Sound Systems
- TV Card Reader -R204- in the luggage compartment on the right rear side
- TV Tuner -R78- in the right rear of the luggage compartment
- MOST Bus
- Instrument Cluster Control Module -J285-
The MOST bus performs the system data exchange in the CAN bus and MMI.
Fault Finding is performed using the "Guided Fault Finding" on the Vehicle Diagnostic Tester.
Notes on MOST bus
The optical data bus "MOST bus" is used in addition to the CAN bus.
A fiber-optic cable is used. Fiber optic cables are routed inside corrugated tubes for protection.
Replace the complete fiber-optic cable if possible.
The front surface of the connectors must not be contaminated.
If the connectors are disconnected: connect the Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9 from the Fiber-Optic Repair Set:VAS6223A .
When routing fiber-optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink the fiber-optic cables.
Fiber-optic cable repair. Refer to FIBER-OPTIC CABLES, REPAIRING .
