Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

The Information Electronics Control Module 1 -J794- must first be removed with the bracket because the wire lengths are very short.

-- Remove the bolts -arrows- on the bracket -2-.

Courtesy of AUDI

-- Tilt the bracket -2- with the Information Electronics Control Module 1 -J794- -1- downward.

-- Release and disconnect the connectors from the Information Electronics Control Module 1 -J794- -1-.

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9  -1- onto the MOST bus connector -2-.

Courtesy of AUDI

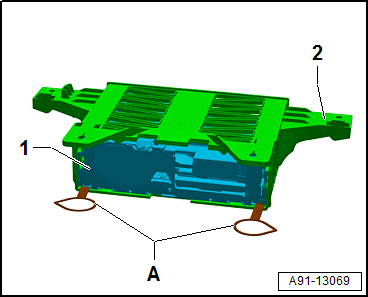

-- Insert the two Radio Removal Tools:T10057  -A- into the release slots on the Information Electronics Control Module 1 -J794- -1-.

Courtesy of AUDI

• The points on the grip eyelets of the Radio Removal Tool:T10057  face outward.
• Both Radio Removal Tools:T10057  must engage.

-- Remove the Information Electronics Control Module 1 -J794- -1- from the bracket -2- at the Radio Removal Tool:T10057  grip eyes -A-.

-- Press the locking tabs on the Information Electronics Control Module 1 -J794- and remove the Radio Removal Tool:T10057  -A-.
