Driver Volume Control -E67-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the center console cover. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .

-- Release and disconnect the connectors -1, 2, 3-.

Fig 1: Center Console Switch Module 1 -EX23-

Courtesy of AUDI

-- Remove the bolts -arrows-.

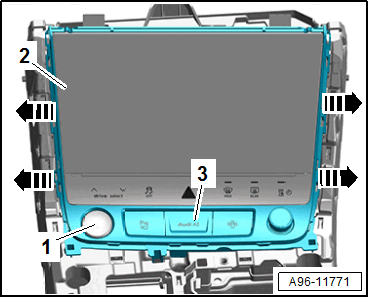

-- Release the decorative frame retainers -2- in direction of -arrows-.

Courtesy of AUDI

-- Remove the switch trim -1- with the switch module -3-.

-- Release the catches -arrows-.

Courtesy of AUDI

-- Remove the Driver Volume Control -E67- -1- from the front center console display cover.
