Wireless Data Transfer Antenna -R336-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the B-pillar lower trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- If installed, remove the air duct from the right B-pillar. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .

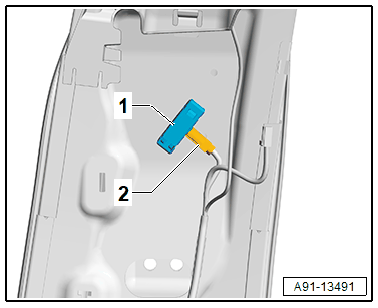

-- Pry out the Wireless Data Transfer Antenna -R336- -1- from the right B-pillar.
-- Release and then disconnect the antenna wire -2-.
