GPS Antenna Splitter, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the rear carpet in the area of the center console and fold it toward the rear. Refer to CARPET, REMOVING AND INSTALLING .
-- Fold the center console insulation upward.

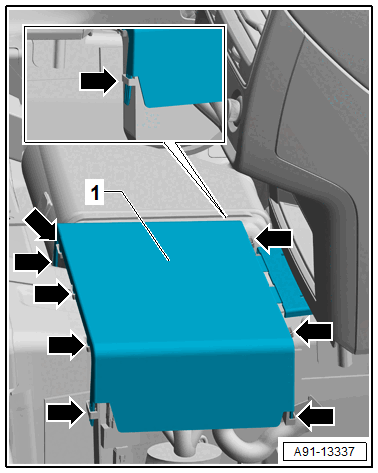

-- Unclip the cable guide cover -1- -arrows-.

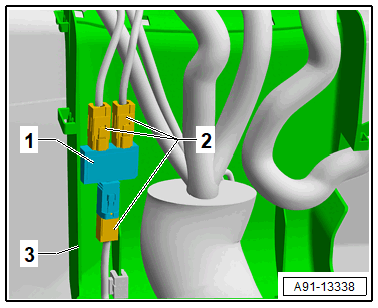

-- Unclip the GPS Antenna Splitter -R110- -1- from the cable guide -3-.
-- Release and disconnect the connectors from the GPS Antenna Splitter -R110- -2-.
-- Remove the GPS Antenna Splitter -R110- -1-.
