, Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

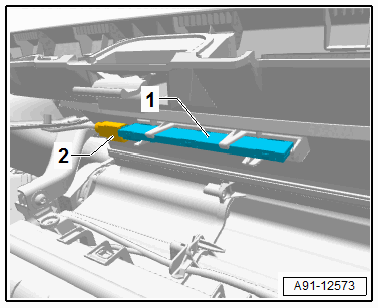

-- Release and disconnect the connector -2-.
-- Remove the Emergency Call Module Antenna 3 -R323- -1- from the mount.
Emergency Call Module Antenna 3 -R323-, Installing
Install in reverse order of removal.
