Center Bumper Antennas, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

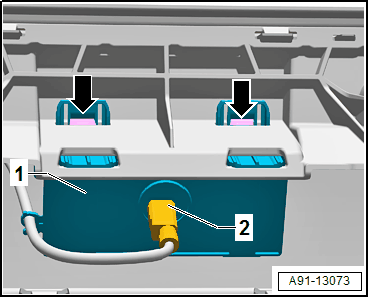

-- Loosen the catches -arrows-.
-- Remove the antenna with the bracket -1- from the bumper cover mount.
-- Release and disconnect the connector -2-.
-- Free up the wiring harness on the bracket -1-.
-- Tilt the bracket -1- in the direction of -arrow- and remove the antenna.
