Antenna Amplifier 4 -R113-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the head curtain airbag guide. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .

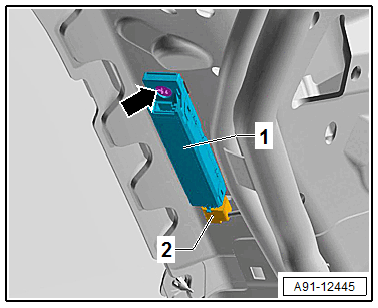

-- Release and disconnect the connector -2- and the connector to the window antenna on the antenna amplifier -1-.
-- Loosen the screw -arrow- several turns and remove the antenna amplifier -1- from the D-pillar.
