Rear Sill Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the railing trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the side cushion, pay attention to the version. Refer to COMPONENT LOCATION OVERVIEW - VEHICLE INTERIOR TRIM PANELS .
-- Loosen the bulkhead partition cover. Refer to BULKHEAD PARTITION COVER, REMOVING AND INSTALLING .
-- Unclip the front sill panel in the rear section of the rear sill panel -1-. Refer to FRONT SILL PANEL, REMOVING AND INSTALLING .
-- Free up the sill panel in the door seal area.

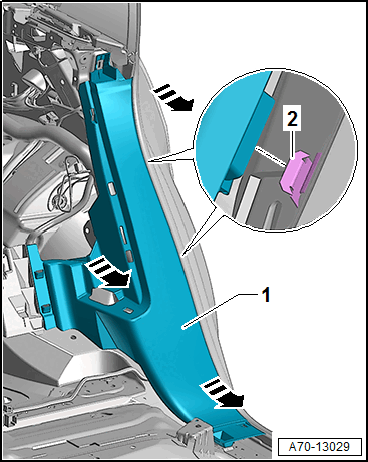

-- Unclip the sill panel -1- from the clamps -2- starting at the bottom using the Trim Removal Wedge:3409 .
-- Disengage the sill panel -1- on the luggage compartment bracket and remove in the direction of -arrow-.
