Overview - D-Pillar Trim Panel

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

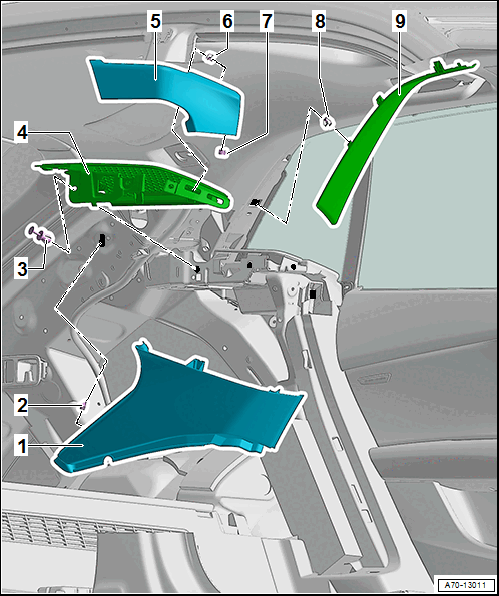

Fig 1: Exploded View Of D-Pillar Trim Panel
GWWA70-13011Courtesy of AUDI
  1. D-Pillar Trim Panel
  2. Clip
    • Insert in the D-pillar trim panel
    • Quantity: 3
  3. Expanding Rivet
    • Quantity: 3
  4. Railing Trim Panel
  5. Railing Trim
  6. Clip
    • Insert into the railing trim panel
    • Quantity: 2
  7. Clip
    • Insert into the railing trim
  8. Clip
    • Insert in the D-pillar trim
    • Quantity: 3
  9. D-Pillar Trim
