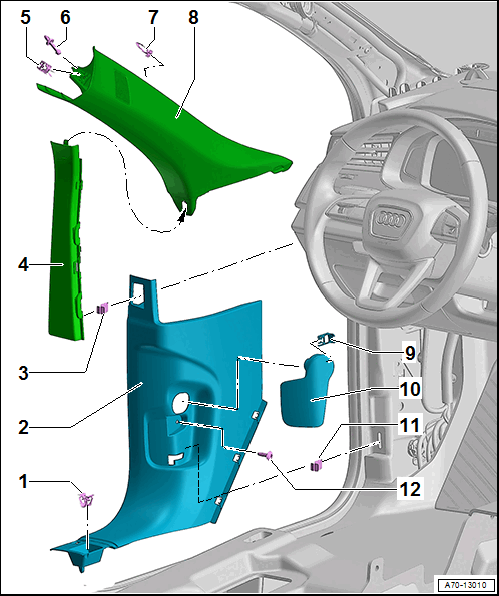

Overview - A-Pillar Trim Panel
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Insert into the A-pillar lower trim panel
- A-Pillar Lower Trim Panel
- Clip
- Insert into the gap cover
- A-Pillar Gap Cover
- Clamp with Hooks
- Replace after removing
- Insert into the A-pillar upper trim panel
- Threaded Stud
- 3.5 Nm
- Clip
- Insert into the A-pillar upper trim panel
- A-Pillar Upper Trim Panel
- Clip
- For hood latch operating lever
- Operating Lever
- For the hood latch
- Only driver side
- Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
- Clip
- Insert into the A-pillar lower trim panel
- Bolt
- 2 Nm
- Only driver side
