B-Pillar Upper Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing B-Pillar Trim

Courtesy of AUDI

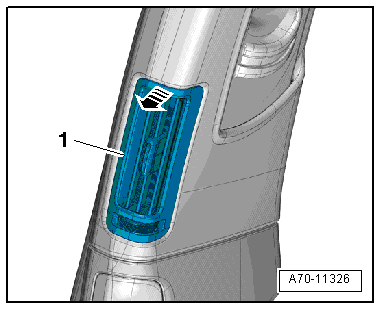

-- If equipped, release the B-pillar vent -1- with a small screwdriver at the upper clip in the direction of -arrow-.

-- Remove the vent from the B-pillar trim panel while releasing and disconnecting the connector.

-- Move the seat belt height adjuster -2- to the lowest position.

Courtesy of AUDI

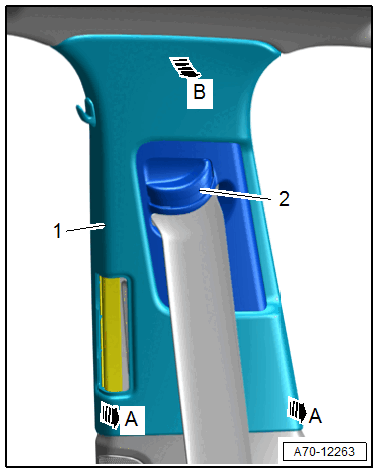

-- Free up the B-pillar trim panel -1- near the door seals, disengage at the side of the B-pillar and unclip it from the bracket in direction of -A arrows-.

-- Remove the B-pillar upper trim panel from the mount on the body in direction of -arrow B- by tilting the trim panel inward and pulling it downward at the same time.

-- Remove the B-pillar trim panel with the seat belt webbing still threaded through.

To replace the B-pillar upper trim panel, remove the front belt end fitting. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .

Bracket, Removing

Courtesy of AUDI

-- If equipped, disengage the air duct at the B-pillar and push slightly to the side together with the seat belt webbing.

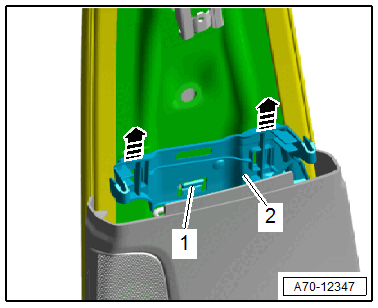

-- Release the catch -1- using a screwdriver, and pull the bracket -2- for the B-pillar trim panel upward out of the mounts in the direction of -arrow-.
