B-Pillar Lower Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front sill panel. Refer to FRONT SILL PANEL, REMOVING AND INSTALLING .
-- Remove the B-pillar upper trim panel, and set it aside with the seat belt webbing still threaded through it. Refer to B-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING .

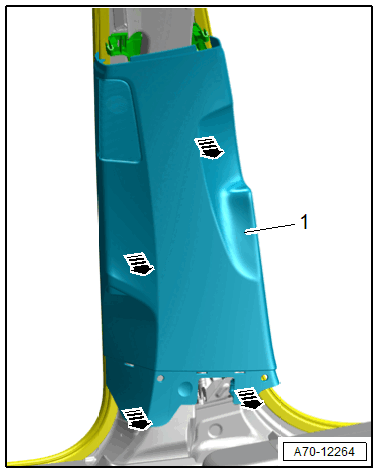

-- Free up the B-pillar lower trim panel -1- in the door seal area, disengage at the side of the B-pillar and unclip from the B-pillar using the Pry Lever:80-200 in direction of -arrows-.
-- If equipped, release and disconnect the connector.
-- Remove the trim panel -1-.
