A-Pillar Upper Trim Panel, Removing And Installing: Removing

Courtesy of AUDI

-- Remove the instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

-- Unclip the A-pillar gap cover -1- using the Trim Removal Wedge:3409  in the direction of -arrow A- and disengage at the A-pillar upper trim panel in the direction of -arrow B-.

-- Free up the A-pillar trim panel -1- near the door seal.

Courtesy of AUDI

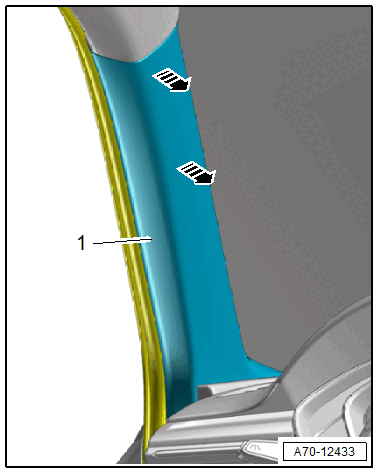

-- Use the Trim Removal Wedge:3409  to detach the A-pillar trim panel up to the first retainer in the direction of -arrow-.

-- To disengage the trim panel from the retaining pin on the A-pillar, remove the clip with the hook -1- in the removal position.

Courtesy of AUDI

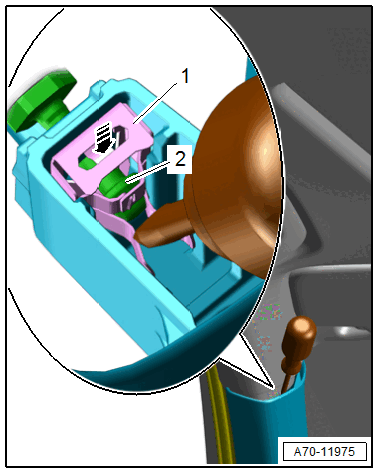

-- To do so, position scraper no. 1 or a flat-head screwdriver as shown on the clips.

-- Press the clip downward into the trim panel in the direction of -arrow- ; this allows the pin head -2- to slide out of the clip hook.

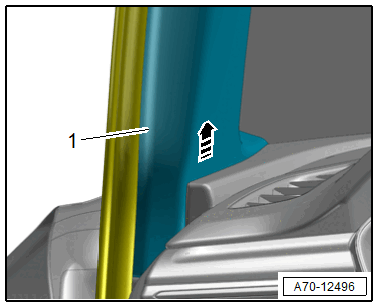

-- Carefully remove the trim panel -1- upward out of the instrument panel in the direction of -arrow-.

Courtesy of AUDI
