A-Pillar Lower Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

-- Remove the instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

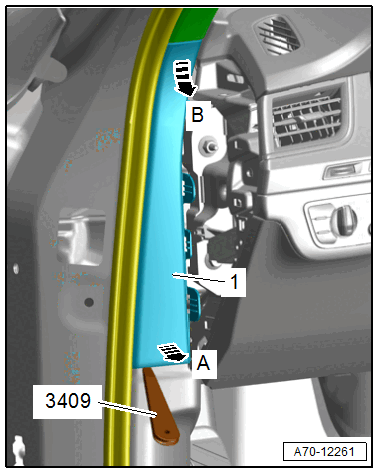

-- Unclip the A-pillar gap cover -1- using the Trim Removal Wedge:3409 in the direction of -arrow A- and disengage at the A-pillar upper trim panel in the direction of -arrow B-.

-- Unclip the sill panel in the front area from the A-pillar lower trim panel. Refer to FRONT SILL PANEL, REMOVING AND INSTALLING .

-- Remove the footrest. Refer to FOOTREST, REMOVING AND INSTALLING .

-- Remove the latch release lever. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .

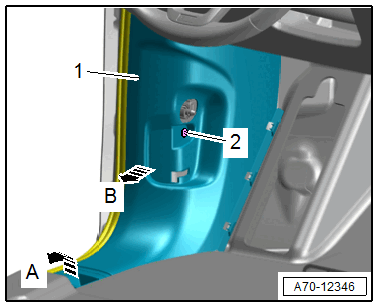

-- Remove the bolt -2-.

Courtesy of AUDI

-- Free up the A-pillar trim panel near the door seal and disengage at the A-pillar.

-- Disengage the A-pillar trim panel -1- at the bottom of the side sill in the direction of -arrow A- and pull toward the rear.

-- Unclip the A-pillar trim panel from the A-pillar in the direction of -arrow B- and remove it.
