Rear Door Trim Panel, Removing And Installing: Notes
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Wedge Set:T10383
Removing
-- Switch off the ignition.
-- Remove the trim molding. Refer to DECORATIVE TRIM, REMOVING AND INSTALLING .

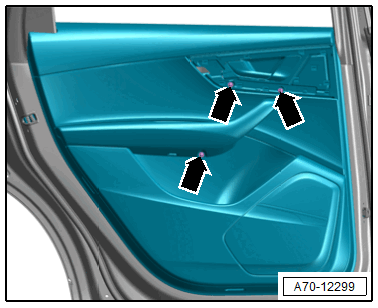

-- Remove the bolts -arrows-.
-- Using the Wedge Set:T10383 , unclip the door trim panel at the lower rear section in a radius beginning at the door by inserting the wedge near the clips between the door trim panel and the door in the direction of -arrow-.
