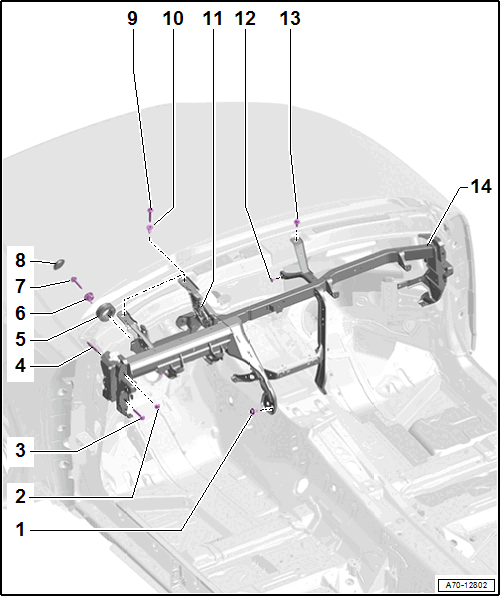

Overview - Instrument Panel CROSSMEMBER
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 3
- Refer to Fig 2
- Nut
- Replace after removing
- Quantity: 2
- Refer to Fig 2
- Bolt
- The mounting threads and contact surface must be free of paint, coating and corrosion. The threaded connection serves as the ground connection.
- Refer to Fig 2
- Threaded Pin
- 20 Nm
- Quantity: 2
- Foam Washer
- Replace if damaged
- Quantity: 2
- Lifter
- Clipped in the crossmember
- Check the lifter adjusting nut for ease of movement
- Quantity: 2
- Bolt
- Quantity: 2
- Refer to Fig 2
- Plug
- Quantity: 2
- Bolt
- Quantity: 2
- Refer to Fig 2
- Spacer
- No replacement part
- Bracket
- For the windshield projection control module
- Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
- Bolt
- For heater and A/C unit
- Refer to Fig 3
- Bolt
- Refer to Fig 2
- Crossmember
- For the instrument panel
- Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING
Instrument Panel Crossmember To Body - Tightening Specifications and Sequence
-- Tighten the bolts in the sequence -1 through 9 - to 20 Nm.
Instrument Panel Crossmember to Heater - Tightening Specifications and Sequence
-- Tighten the bolts in the sequence -1 through 5- to 3.6 Nm.
-- Then tighten the screw -6- for the front passenger side air duct to 1.5 Nm.
