Interior Door Mechanism, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Place the door trim panel on a soft and clean surface.
-- Remove the insulation mat -item 4- OVERVIEW - FRONT DOOR TRIM PANEL.
-- Release and disconnect the connectors at the rear of the door trim panel.

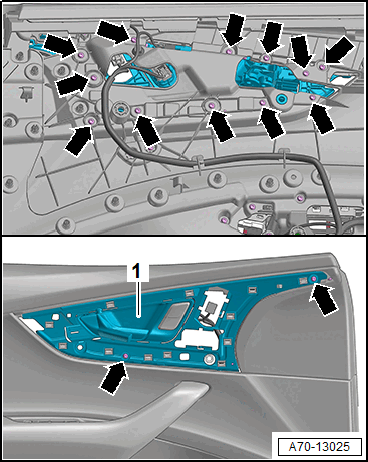

-- Remove the bolts -arrows-.
-- Pull the interior door mechanism -1- from the door trim panel and remove it.
