Right Flange Shaft, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right subframe shield. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the heat shield from the right drive axle.

Fig 1: Drive Axle Heat Shield

Courtesy of AUDI

-- Remove the right drive axle from the transmission and lay toward the rear. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Place the :SMN372500 under the transmission.

Courtesy of AUDI

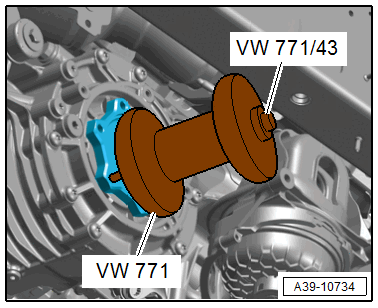

-- Place the :VW771 with :VW771/43 on the flange shaft, as shown.

-- Remove flange shaft.
