Right Flange Shaft, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
NOTE:
Replace the circlip after removal.

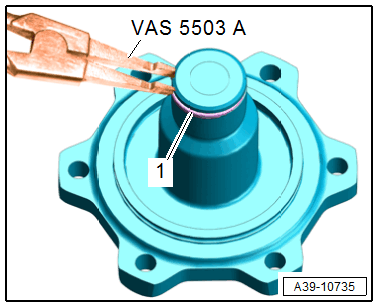

-- Insert the circlip -1- with the :VAS5503A .
-- Check the right flange shaft seal for damage and replace if necessary. Refer to RIGHT SEAL, REPLACING .
-- Fill the space between the sealing lip and the dust lip halfway with Sealing Grease.
-- Insert the right flange shaft.
-- Install the drive axle. Refer to OVERVIEW - DRIVE AXLE .
-- Install the drive axle heat shield. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .
-- Gear oil level in front final drive, checking and filling. Refer to GEAR OIL, CHECKING LEVEL .
