Left Flange Shaft, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

NOTE:

Secure all hose connections with hose clamps corresponding to series production. Refer to the appropriate Parts information.

To installation the flange shaft further removal is required.

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

NOTE:

To catch escaping coolant, place a cloth underneath.

Courtesy of AUDI

-- Clamp the coolant hose with the :3094 .

-- Loosen the hose clamps -2- and remove the coolant hoses.

-- Remove the bolts -arrows- and push the ATF cooler with the hoses -1 and 4- connected to the side.

-- Remove the lower cover -1- from the transmission in direction of -arrow-.

Courtesy of AUDI

-- Always clean the left flange shaft and the converter housing in the area where the differential is accessed -arrow A- and the seal -arrow B-.

Fig 1: Carefully Set Down Electro-Drive Drive Motor

Courtesy of AUDI

NOTE:

If the seal between the differential and transmission housing -arrow B- is damaged replace. Refer to OVERVIEW - FINAL DRIVE .

-- Fill the space between the sealing lip and the dust lip halfway with Sealing Grease.

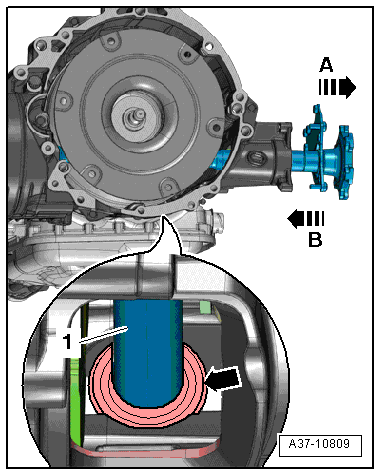

-- Install the left flange shaft -1- into the transmission in direction of -arrow B-. When doing this, insert the flange shaft centrally into the seal -arrow- on the front differential.

Fig 2: Install Left Flange Shaft Into Transmission When Doing This, Insert Flange Shaft Centrally Into Shaft Seal On Front Differential

Courtesy of AUDI

CAUTION:

There is a risk of damaging the seal -arrow- between the final drive and the transmission housing from the flange shaft splines.

Keep the flange shaft centered.

NOTE:

A seal must be replaced if it is damaged.

Ignore -arrow A-.

-- Install the drive axle. Refer to OVERVIEW - DRIVE AXLE .

-- Install the drive axle heat shield. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

-- Install the ATF cooler. Refer to ATF COOLER, REMOVING AND INSTALLING .

-- Fill with coolant. Refer to COOLANT, DRAINING AND FILLING - 3.0L , COOLANT, DRAINING AND FILLING - Servicing 3.0L .

-- Tighten the left flange shaft mounting bracket -arrows-.

Fig 3: Identifying Bolts & Flange Shaft Mounting Bracket

Courtesy of AUDI

-- Fill the gear oil in the transmission. Refer to GEAR OIL, DRAINING AND FILLING .
