Overview - Center Differential
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

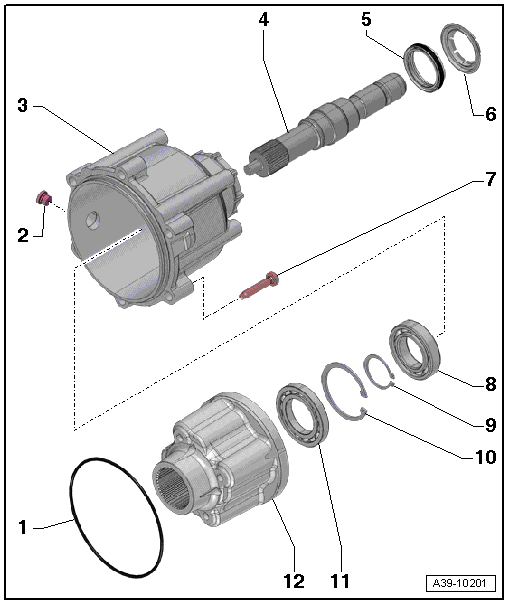

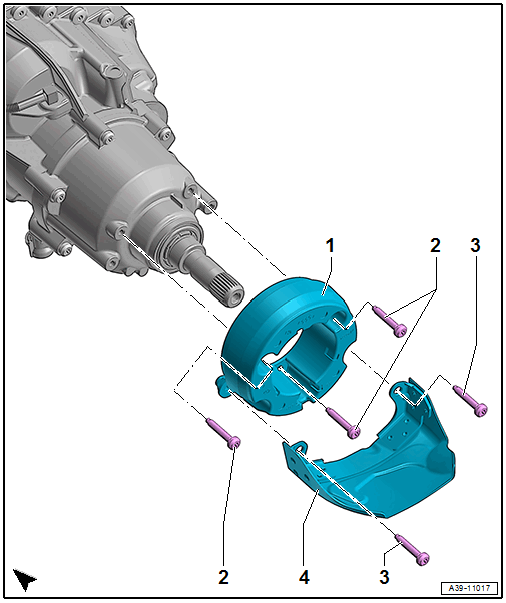

Overview - vibration damper -item 1- OVERVIEW - CENTER DIFFERENTIAL
- O-Ring
- Always replace
- Coat with transmission fluid
- Plug
- For the hole for checking and filling
- For the transmission fluid inside the transfer case
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - DRAIN AND CHECK PLUGS .
- Center Differential Housing
- Removing and Installing. Refer to CENTER DIFFERENTIAL, REMOVING AND INSTALLING .
- Transmission Output Shaft With Splines
- Removing and Installing. Refer to TRANSMISSION OUTPUT SHAFT SEAL, REPLACING .
- Replace the seal when replacing the transmission output shaft with splines
- Seal
- For the transmission output shaft with splines
- Replacing. Refer to TRANSMISSION OUTPUT SHAFT SEAL, REPLACING .
- Dust Ring
- Cannot be removed without being destroyed
- Bolt
- Tightening specification and sequence. Refer to Fig 3.
- Always replace
- Ball Bearing
- For the transmission output shaft with splines
- Replacing. Refer to TRANSMISSION OUTPUT SHAFT BALL BEARING, REPLACING .
- Circlip
- For the transmission output shaft with splines
- Circlip
- For the ball bearing on the transmission output shaft with splines
- Ball Bearing
- For the center differential
- Replacing. Refer to CENTER DIFFERENTIAL BALL BEARING, REPLACING .
- Center Differential
Center Differential Housing - Tightening Specification and Sequence:
-- Tighten the bolts in three steps in the sequence shown:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 and 6- | 3 Nm |
| 2. | -1 to 6- | 10 Nm |
| 3. | -1 to 6- | 90° additional turn |
