Warning Label, Checking

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

A warning label is located on all high-voltage components.

For maintenance work pay attention that this warning label is not damaged or dirty and all high-voltage components are present.

Replace if necessary.

Warning labels are on the following assembly groups:

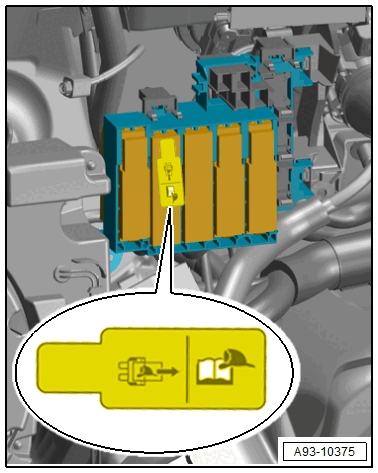

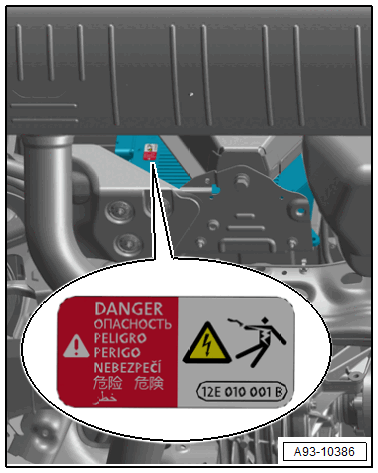

Rescue tag in the engine compartment under the left headlamp cover (depending on the version)

Courtesy of AUDI OF AMERICA, LLC

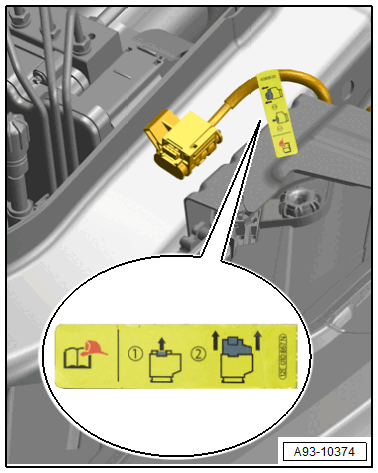

Rescue tag in the vehicle interior behind the service cover of the left luggage compartment side trim panel

Courtesy of AUDI OF AMERICA, LLC

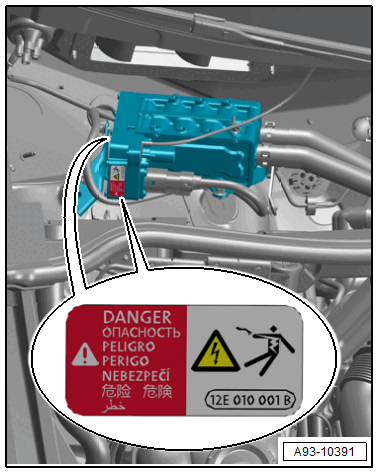

High-Voltage Battery Charger 1 -AX4-

Courtesy of AUDI OF AMERICA, LLC

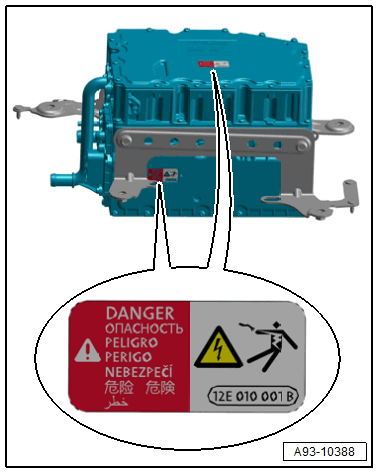

Electric Drive Power and Control Electronics -JX1- - Bottom

Courtesy of AUDI OF AMERICA, LLC

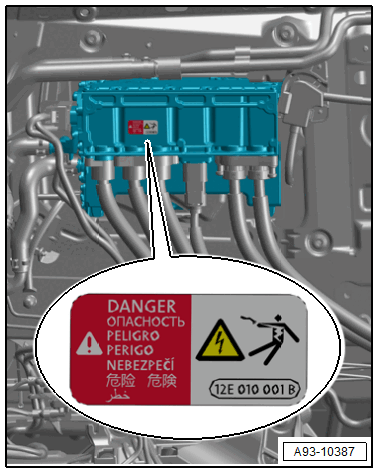

Electric Drive Power and Control Electronics -JX1- - Side and Top

Courtesy of AUDI OF AMERICA, LLC

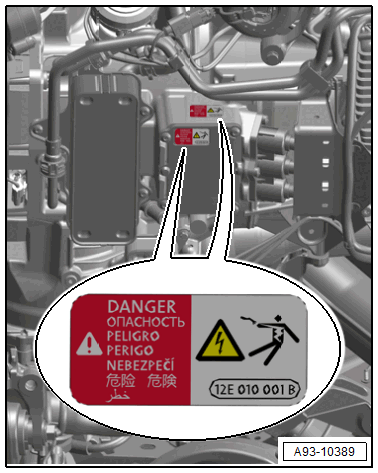

Three-Phase Current Drive -VX54- - Side and Bottom

Courtesy of AUDI OF AMERICA, LLC

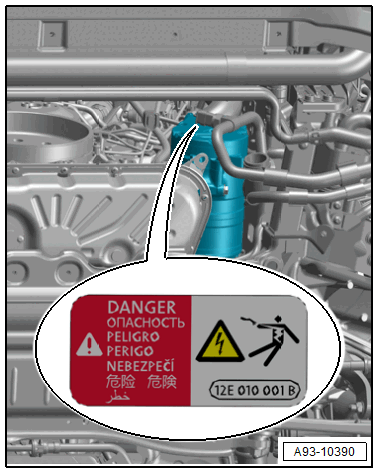

Electrical A/C Compressor -V470-

Courtesy of AUDI OF AMERICA, LLC
High-Voltage Heater (PTC) -Z115- - Side and Top

Courtesy of AUDI OF AMERICA, LLC
Hybrid Battery Unit -AX1-, Audi Q7 through 10/19/2020

Courtesy of AUDI OF AMERICA, LLC

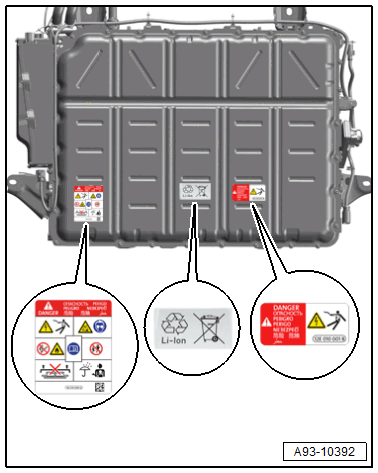

Upper Hybrid Battery Unit -AX1-, Audi Q8 and Audi Q7 from 10/26/2020

Courtesy of AUDI OF AMERICA, LLC

TIP:

The front right sticker on the high-voltage battery is only required for North America.

High-Voltage Battery Control Module -SX6-, Audi Q8, Audi Q7 from 10/26/2020

Courtesy of AUDI OF AMERICA, LLC
