Component Location Overview - Potential Equalization Cables, AUDI Q8
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

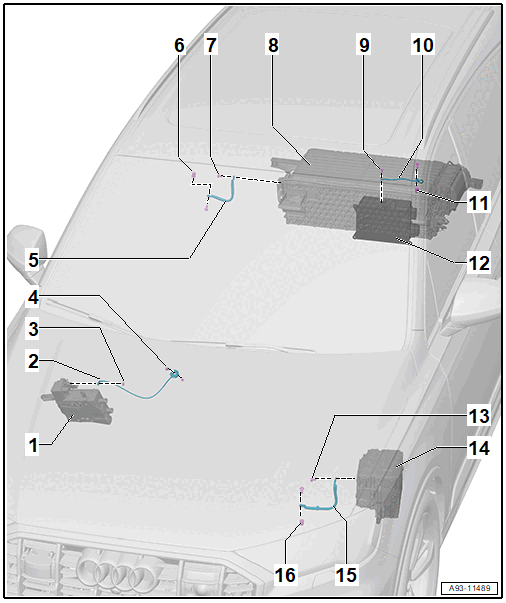

- High-Voltage Heater (PTC) -Z115-
- Potential Equalization Cable
- For high-voltage heater (PTC)
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, HIGH-VOLTAGE HEATER (PTC) .
- Nut
- 9 Nm
- Nut
- 9 Nm
- Potential Equalization Cable
- For hybrid battery unit
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, HIGH-VOLTAGE BATTERY UNIT .
- Nut
- 8 Nm
- Bolt
- 20 Nm
- Hybrid Battery Unit -AX1-
- Bolt
- 9 Nm
- Potential Equalization Cable
- For the High-Voltage Battery Charger 1
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, HIGH-VOLTAGE BATTERY CHARGER 1 .
- Nut
- 9 Nm
- High-Voltage Battery Charger 1 -AX4-
- With High-Voltage Battery Charger Control Module -J1050-
- Bolt
- 17 Nm
- Electric Drive Power and Control Electronics -JX1-
- Potential Equalization Cable
- For electric drive power and control electronics
- Removing and Installing. Refer to POTENTIAL EQUALIZATION CABLE, REMOVING AND INSTALLING, ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS .
- Nut
- 16 Nm
