Component Location Overview - Electric Drive Power And Control Electronics And Mount

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

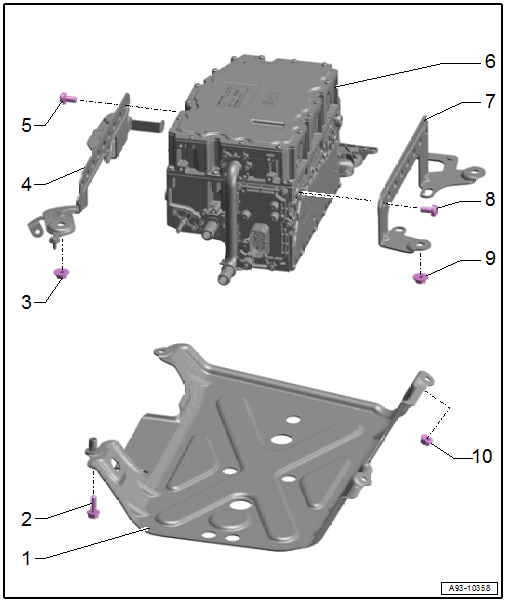

Fig 1: Exploded View Of Electric Drive Power And Control Electronics And Mount

Courtesy of AUDI OF AMERICA, LLC

Impact Guard
- For the electric drive power and control electronics
- Removing and Installing. Refer to OVERVIEW - UNDERBODY BRACING .
Bolt
- Tightening specification. Refer to OVERVIEW - UNDERBODY BRACING .
- Quantity: 2
Nut
- 20 Nm
- Quantity: 2
Right Bracket
- For Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to BRACKET FOR Electric Drive Power and Control Electronics -JX1-, REMOVING AND INSTALLING .
Bolt
- 15 Nm
- Quantity: 3
Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING .
Left Bracket
- For Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to BRACKET FOR Electric Drive Power and Control Electronics -JX1-, REMOVING AND INSTALLING .
Bolt
- 15 Nm
- Quantity: 2
Nut
- 20 Nm
- Quantity: 2
Nut
- Tightening specification. Refer to OVERVIEW - UNDERBODY BRACING .
- Quantity: 2
