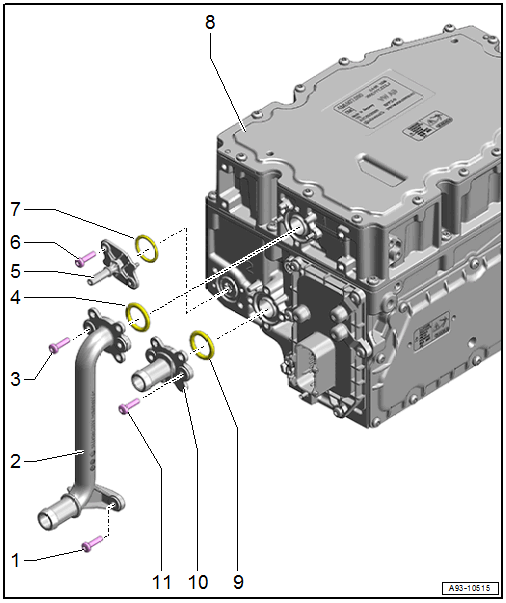

Component Location Overview - Electric Drive Power And Control Electronics And Mount, Attachments
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 3.8 Nm
- Coolant Pipe
- Bolt
- 3.8 Nm
- O-Ring
- Replace after removing
- Connection
- For the housing ventilation
- Do not damage the membrane in the Electric Drive Power and Control Electronics -JX1-
- Bolt
- 3.8 Nm
- O-Ring
- Replace after removing
- Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing
- Coolant Connection
- Bolt
- 3.8 Nm
