Torsion Damper, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- The Three-Phase Current Drive -VX54- is removed. Refer to Three-Phase Current Drive -VX54-, REMOVING AND INSTALLING .
-- Remove the left flange shaft. Refer to LEFT FLANGE SHAFT, REMOVING AND INSTALLING .

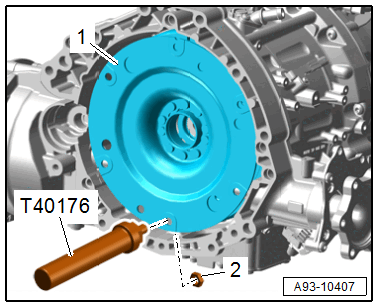

-- Secure the Puller - Clutch Module:T40176 on the harmonic balancer -1- with the nut -2-.
-- Turn the Puller - Clutch Module:T40176 upward.

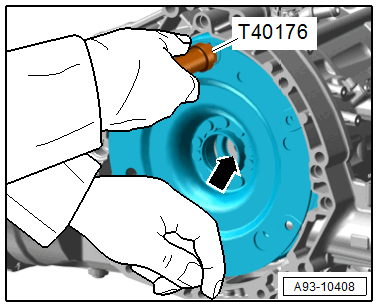

-- To prevent the torsion damper from tipping, counterhold on the bottom of the torsion damper as shown.
-- Remove the torsion damper without tilting from the input shaft -arrow-.
-- Place the torsion damper carefully on the workbench.
