Three-Phase Current Drive, Transporting
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
Procedure
- The Three-Phase Current Drive -VX54- is removed. Refer to Three-Phase Current Drive -VX54-, REMOVING AND INSTALLING .

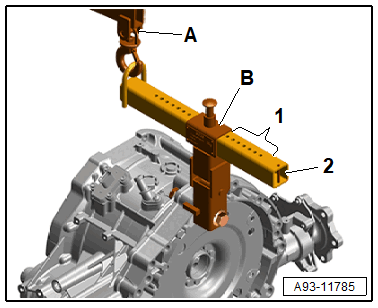

-- Install the Transmission Support Jig:3336B -item B- to the Three-Phase Current Drive -VX54-.
-- Adjust the support arm -2- on the sliding bar with the locking pin.
1 -
Number of Viable Holes = 7
-- Lift the Three-Phase Current Drive -VX54- together with the mounted Transmission Support Jig:3336B -item B- using the Shop Crane:VAS6100 -item A-.
