Drive Motor Temperature Sensor -G712-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Torsion damper removed. Refer to TORSION DAMPER, REMOVING AND INSTALLING .

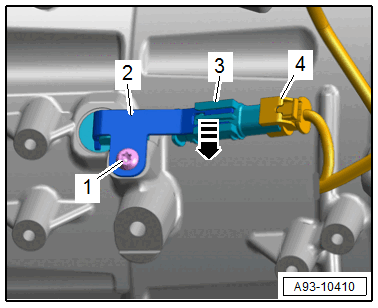

-- Disconnect the connector -4-.
-- Remove the bolt -1-.
-- Release the catch in direction of -arrow- and remove the connector -3- from the retaining plate -2-.

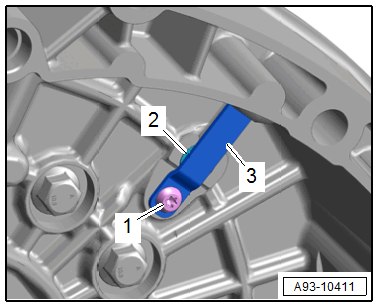

-- Remove the bolt -1- and remove the retaining plate -3- upward.
-- Carefully remove the plugs -2- from the housing and remove the Drive Motor Temperature Sensor -G712-.
