Engine Sound Generator Control Module -J943-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

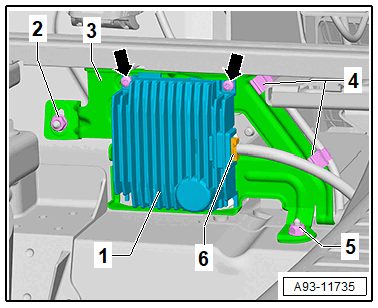

-- Remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .
-- Disconnect the connector -6-.
-- Remove the bolts -arrows-.
-- Remove the Engine Sound Generator Control Module -J943- -1- from the bracket -3-.
Bracket, Removing:
-- Loosen clips -4- and free up wiring harness.
-- Remove the nuts -2 and 5- and also remove the bracket -3-.
