Engine Sound Generator Actuator 1 -R257-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front and rear section of the front right wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

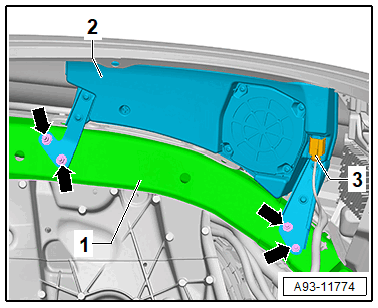

-- Disconnect the connector -3-.
-- Remove the nuts -arrows-.
-- Remove the Engine Sound Generator Actuator 1 -R257- -2- from the longitudinal member -1-.
